The following are some scenarios developed by Company to demonstrate the various features of the Tracker™. Feel free to read more and download the scenarios for use with the Tracker™ and TF below, or view the TF viewer files (.vdf) created using these scenarios.

2D Visualization
3D Visualization
Vehicle Path Visualization
Reports and Graphs
Tool Features

Files

Description	Preview	Download

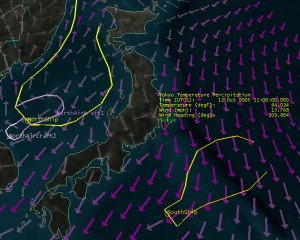

Japan Scenario This scenario contains wind and temperature data for the region around Japan. Wind vectors are visualized on the 3D globe while a data display on Tokyo shows temperature, wind magnitude, and wind direction. The ship's paths are color coded by the temperatures they will encouter while the aircrafts are color coded by wind magnitudes they will encounter.		Scenario 0.47 MB (zipped)
		VDF 0.79 MB

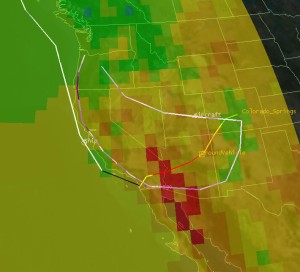

West Coast Ocean Scenario This scenario contains wind, temperature, and percipitation on the west coast and the pacific. These weather elements are visualized on the 3D globe along with being applied to each of the objects: a plane, a truck, and a ship. The aircraft's path is color coded for wind speeds it encouters; the truck's path is color coded by the temperature it encounters; and the ship's path is color coded by the percipitation or rain it will encounter. For analysis purposes, a wind vector report has been generated for the aircraft.		Scenario 3.91 MB (zipped)
		VDF 0.48 MB
